Seamlessly Integrating AWS NLB, ALB, and Lambda

Introdcution

AWS released that AWS ALB(ALB) can connect to AWS Lambda(Lambda).
We also can connect to AWS NLB(NLB) to ALB. So I want to write about this and how do we implement this

Process Application Load Balancer requests with Lambda

Overall

Component

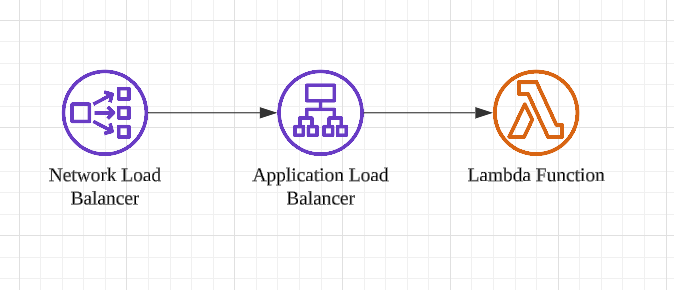

What we want to discuss involves the following components. The request begins at the NLB, proceeds to the ALB, and finally reaches the Lambda. This flow is essential for understanding the system’s overall architecture and its operational efficiency. Let’s delve into the details to ensure we cover all aspects thoroughly.

Implementation

# nlb
resource "aws_lb" "sample_nlb" {
  name                             = "nlb"
  load_balancer_type               = "network"
  internal                         = true
  enable_cross_zone_load_balancing = true
  subnet_mapping {
    subnet_id            = aws_subnet.subnet["a"].id,
    private_ipv4_address = "10.20.0.01"
  }
}

resource "aws_lb_listener" "sample_nlb" {
  load_balancer_arn = aws_lb.sample_nlb.arn
  protocol          = "TCP"
  port              = "80"

  default_action {
    type             = "forward"
    target_group_arn = aws_lb_target_group.sample_nlb_tg.arn
  }
}

resource "aws_lb_target_group" "sample_nlb_tg" {
  name        = "nlb-tg"
  target_type = "alb"
  vpc_id      = aws_vpc.sample.id
  protocol    = "TCP"
  port        = 80
}

resource "aws_lb_target_group_attachment" "sample_nlb_alb_attachment" {
  target_group_arn = aws_lb_target_group.sample_nlb_tg.arn
  target_id        = aws_lb.alb.arn
  port             = 80
}


# alb
resource "aws_lb" "alb" {
  name               = "alb"
  load_balancer_type = "application"
  internal           = true

  subnets = [
    aws_subnet.subnet["b"].id,
    aws_subnet.subnet["c"].id,
  ]
  security_groups = [
    aws_security_group.alb_sg.id,
  ]
}

resource "aws_lb_listener" "alb_listener" {
  load_balancer_arn = aws_lb.alb.arn
  port              = "80"
  protocol          = "HTTP"

  default_action {
    type             = "forward"
    target_group_arn = aws_lb_target_group.alb_tg.arn
  }
}

resource "aws_lb_target_group" "alb_tg" {
  name        = "alb-tg"
  vpc_id      = aws_vpc.sample.id
  target_type = "lambda"
  protocol    = "HTTP"
  port        = 80
}

resource "aws_lb_target_group_attachment" "lambda_attachment" {
  target_group_arn = aws_lb_target_group.alb_tg.arn
  target_id        = module.sample.lambda_function_arn
}

# lambda
module "sample" {
  source = "terraform-aws-modules/lambda/aws"

  function_name  = "sample"
  description    = "sample"
  create_package = false
  package_type   = "Image"
  image_uri      = "${aws_ecr_repository.sample.repository_url}:latest"
  timeout        = 30

  vpc_subnet_ids = [
    aws_subnet.subnet["d"].id,
    aws_subnet.subnet["e"].id,
  ]
  vpc_security_group_ids = [
    aws_security_group.alb_to_lambda.id,
  ]
  attach_network_policy = true

  environment_variables = {
    ENV = "hoge"
  }
}

resource "aws_lambda_permission" "with_lb" {
  statement_id  = "AllowExecutionFromlb"
  action        = "lambda:InvokeFunction"
  function_name = module.receive_notification.lambda_function_arn
  principal     = "elasticloadbalancing.amazonaws.com"
  source_arn    = aws_lb_target_group.alb_tg.arn
}

Checkpoint

NLB has heealth check by default

This means we have to implement health check path in lambda. Unlike with an ALB, where we can manually configure and manage health checks, this functionality cannot be manually removed or bypassed in the case of Lambda.

Health checks for your target groups

Request from NLB is a Event

The request from the NLB is structured as follows. We retrieve the path through the event object, which differs slightly from typical HTTP frameworks like Gin or Echo. This method introduces some unique nuances in handling requests. Although you might find this repository helpful for implementation, I haven’t had the chance to test it yet,
https://github.com/awslabs/aws-lambda-go-api-proxy

{
    "requestContext": {
        "elb": {
            "targetGroupArn": "arn:aws:elasticloadbalancing:us-east-1:123456789012:targetgroup/lambda-279XGJDqGZ5rsrHC2Fjr/49e9d65c45c6791a"
        }
    },
    "httpMethod": "GET",
    "path": "/lambda",
    "queryStringParameters": {
        "query": "1234ABCD"
    },
    ...
    ...
}

Process Application Load Balancer requests with Lambda

Cross-zone load balancing in NLB

Enabling this function allows traffic to be distributed across all registered targets in every registered Availability Zone. This setup provides an efficient way to design redundancy, ensuring high availability, while keeping costs relatively low.

Cross-zone load balancing for target groups

Lambda permission for Loadbalancer

Of course, it is essential to configure the permission to allow the LoadBalancer to invoke the Lambda.

resource "aws_lambda_permission" "with_lb" {
  statement_id  = "AllowExecutionFromlb"
  action        = "lambda:InvokeFunction"
  function_name = module.sample.lambda_function_arn
  principal     = "elasticloadbalancing.amazonaws.com"
  source_arn    = aws_lb_target_group.alb_tg.arn
}

Process Application Load Balancer requests with Lambda
